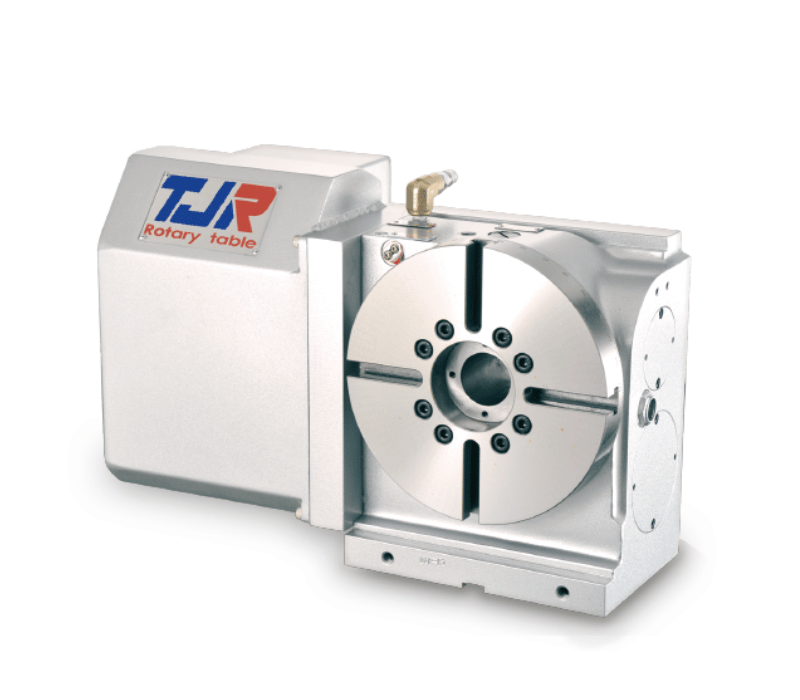

AR Series Ø125-250 Pneumatic Brake (Left Side Motor)

ARs-125L

Application: Vertical & Horizontal

Center height (Vertical)(mm): 110

Transmission Mechanisms: Worm & Worm gear

Clamping system (MPa / kg/cm²): Pneumatic (0.6 / 6)

Allowable workpiece load (Vertical)(kg): 50

Allowable workpiece load (with support table)(kg): 100

Allowable workpiece load (Horizontal)(kg): 100

AR-170L

Application: Vertical or Horizontal

Center height (Vertical)(mm): 135

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulics (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Allowable workpiece load (with support table)(kg): 150

Allowable workpiece load (Horizontal)(kg): 150

AR-210L

Application: Vertical or Horizontal

Center height (Vertical)(mm): 160

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Allowable workpiece load (with support table)(kg): 150

Allowable workpiece load (Horizontal)(kg): 150

AR-250L

Application: Vertical or Horizontal

Center height (Vertical)(mm): 160

Transmission Mechanisms: Worm & Worm Gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Allowable workpiece load (with support table)(kg): 150

Allowable workpiece load (Horizontal)(kg): 150
