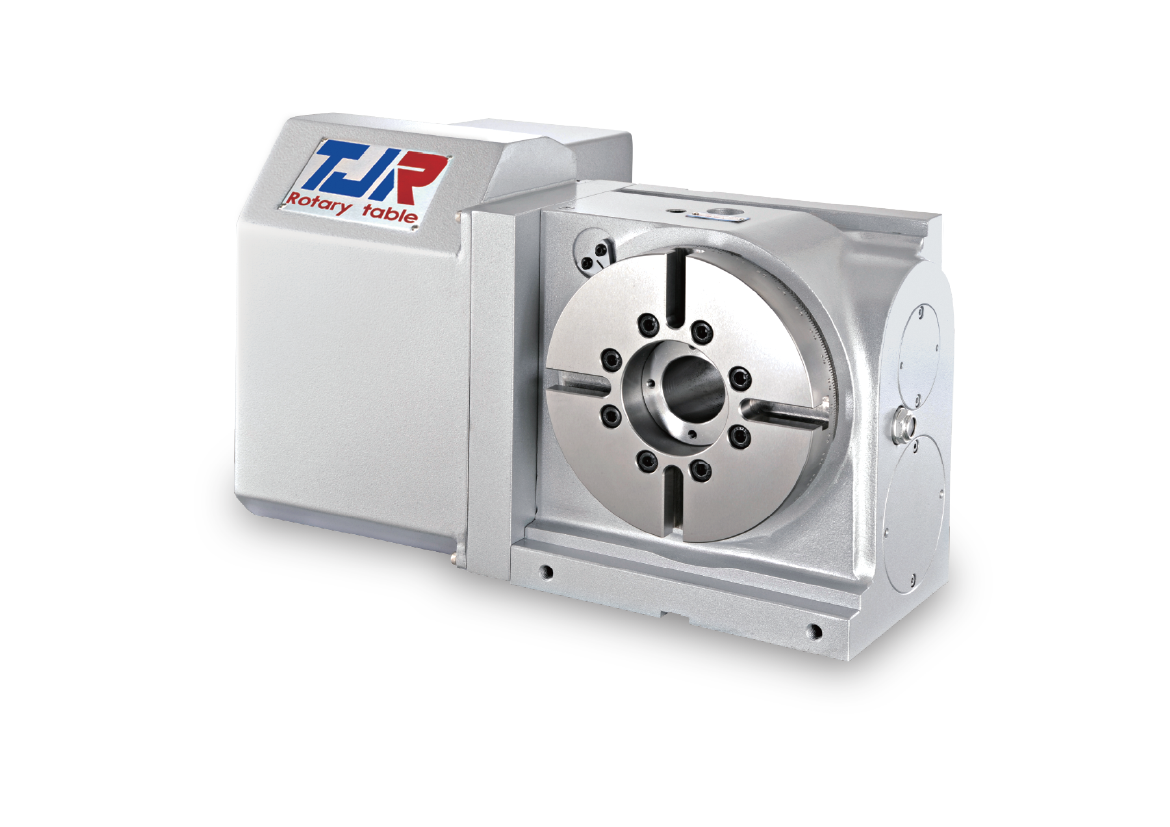

AR-H Series Ø170-250 Hydraulics Brake (Left Side Motor)

AR-170LH

Application: Vertical & Horizontal

Center height (Vertical)(mm): 135

Transmission Mechanisms: Worm & Worm gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Allowable workpiece load (with support table)(kg): 150

Allowable workpiece load (Horizontal)(kg): 150

AR-210LH

Application: Vertical & Horizontal

Center height (Vertical)(mm): 160

Transmission Mechanisms: Worm & Worm gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Allowable workpiece load (with support table)(kg): 150

Allowable workpiece load (Horizontal)(kg): 150

AR-250LH

Application: Vertical & Horizontal

Center height (Vertical)(mm): 160

Transmission Mechanisms: Worm & Worm gear

Clamping system (MPa / kg/cm²): Hydraulic (3.5 / 35)

Allowable workpiece load (Vertical)(kg): 75

Allowable workpiece load (with support table)(kg): 150

Allowable workpiece load (Horizontal)(kg): 150
