Specification
Item
Data
Table diameter(mm)
Ø170
Inner diameter of mandrel sleeve(mm)
Ø40H7
Diameter of center through hole(mm)
Ø40
Center height (Vertical)(mm)
135
Table T-slot width(mm)
12H7
Guide block width(mm)
18h7
Clamping system (MPa / kg/cm²)
Pneumatic (0.6 / 6)
Clamping torque(N.m / kgf · m)
304 / 31
Allowable workpiece load (Vertical)(kg)
75
Net weight ( sever motor excluded)(kg)
29

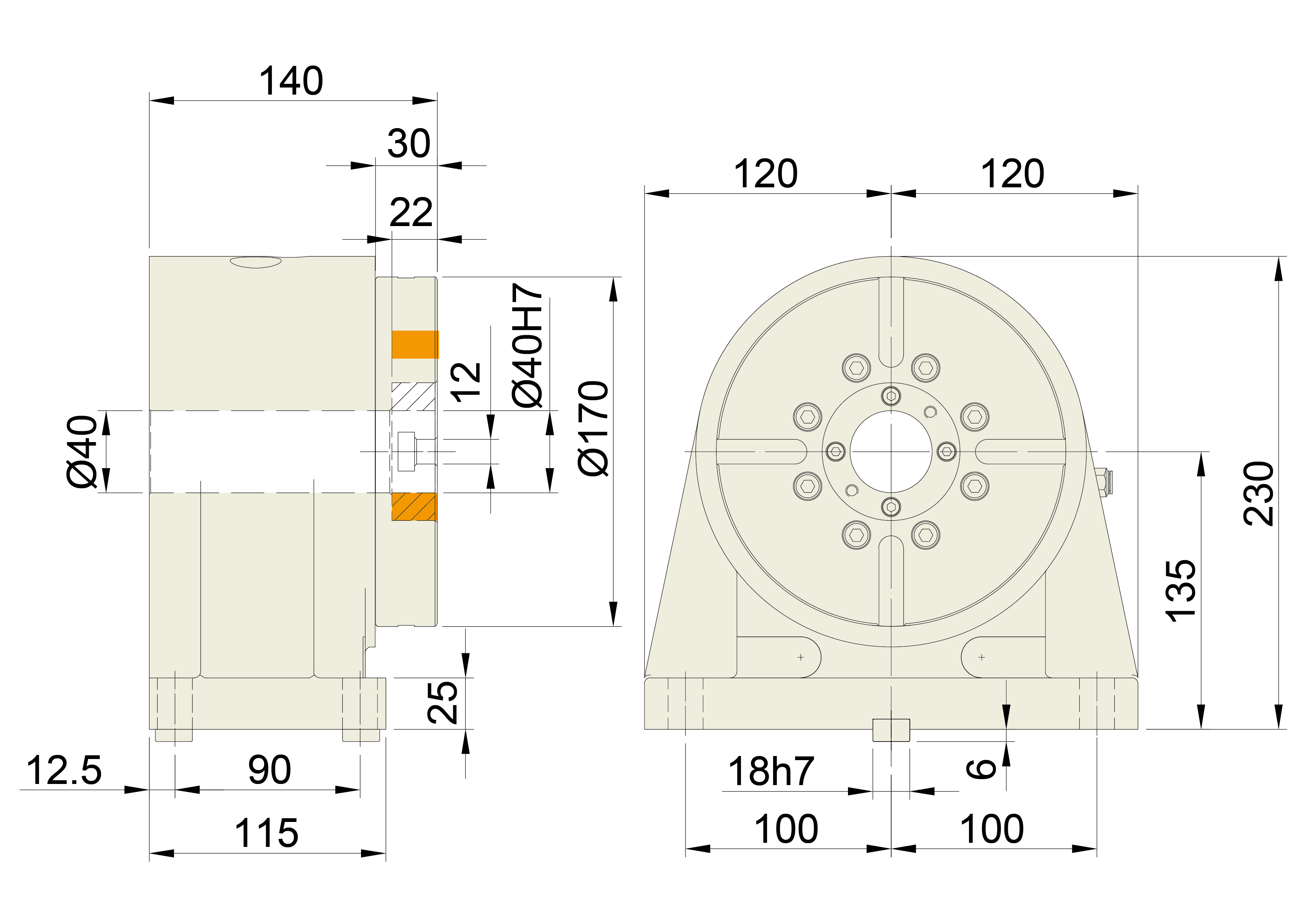

Dimension
