Specification
Item
Data
Table diameter(mm)
Ø255
Inner diameter of mandrel sleeve(mm)
Ø80H7
Diameter of center through hole(mm)
Ø80
Center height (Vertical)(mm)
160
Table T-slot width(mm)
12H7
Guide block width(mm)
18h7
Clamping system (MPa / kg/cm²)
Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)
687 / 70
Allowable workpiece load (Vertical)(kg)
100
Net weight ( sever motor excluded)(kg)
57

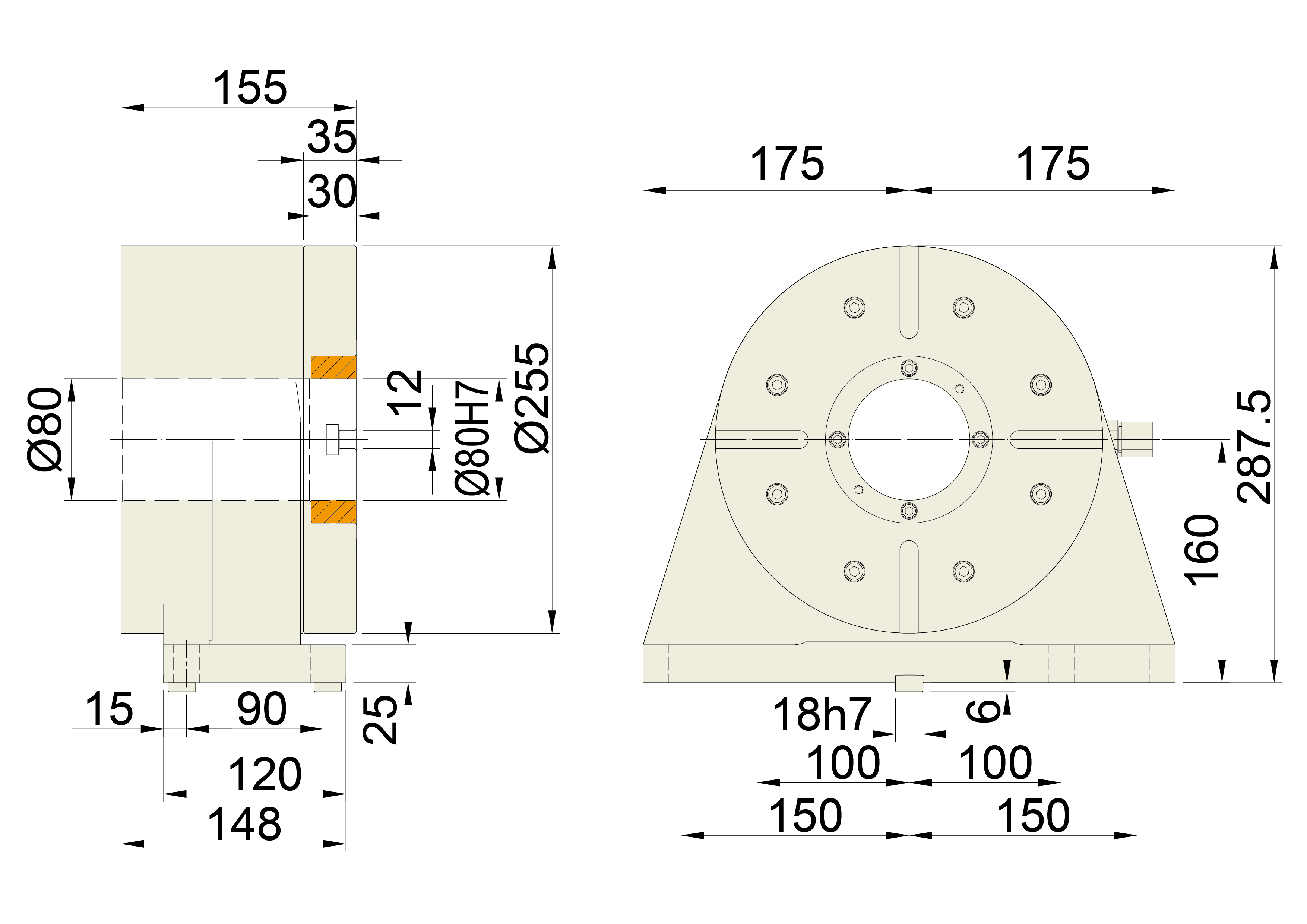

Dimension
