Specification
Item
Data
Table diameter(mm)
Ø320
Inner diameter of mandrel sleeve(mm)
Ø120H7
Diameter of center through hole(mm)
Ø80
Center height (Vertical)(mm)
210
Table T-slot width(mm)
14H7
Guide block width(mm)
18h7
Clamping system (MPa / kg/cm²)
Hydraulic (3.5 / 35)
Clamping torque(N.m / kgf · m)
1128 / 115
Allowable workpiece load (Vertical)(kg)
150
Net weight ( sever motor excluded)(kg)
83

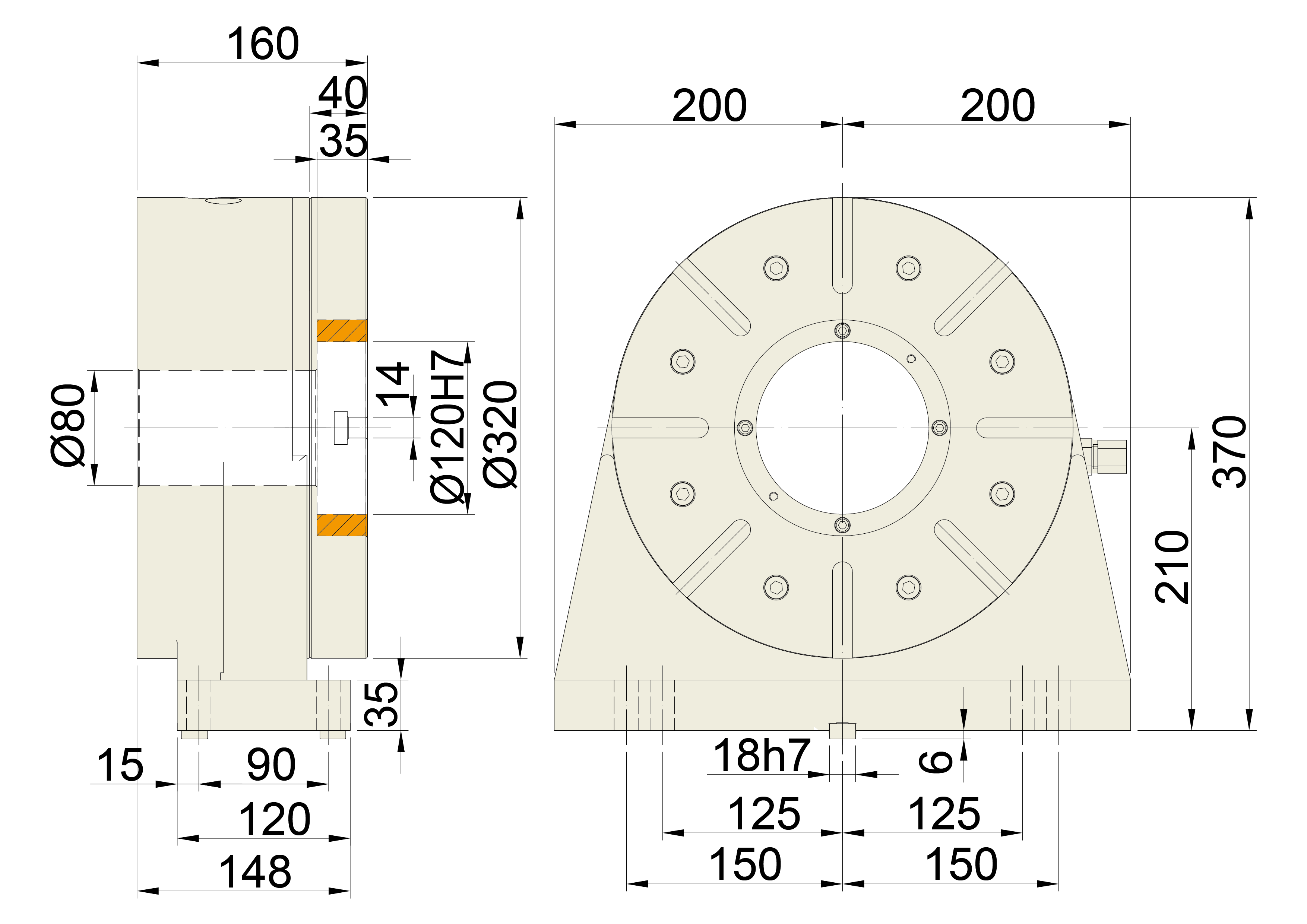

Dimension
