Specification
Item
Data
Table diameter(mm)
Ø170
Inner diameter of mandrel sleeve(mm)
Ø40H7
Diameter of center through hole(mm)
Ø40
Center height (Vertical)(mm)
135
Table T-slot width(mm)
12H7
Guide block width(mm)
18h7
Allowable workpiece load (Vertical)(kg)
50

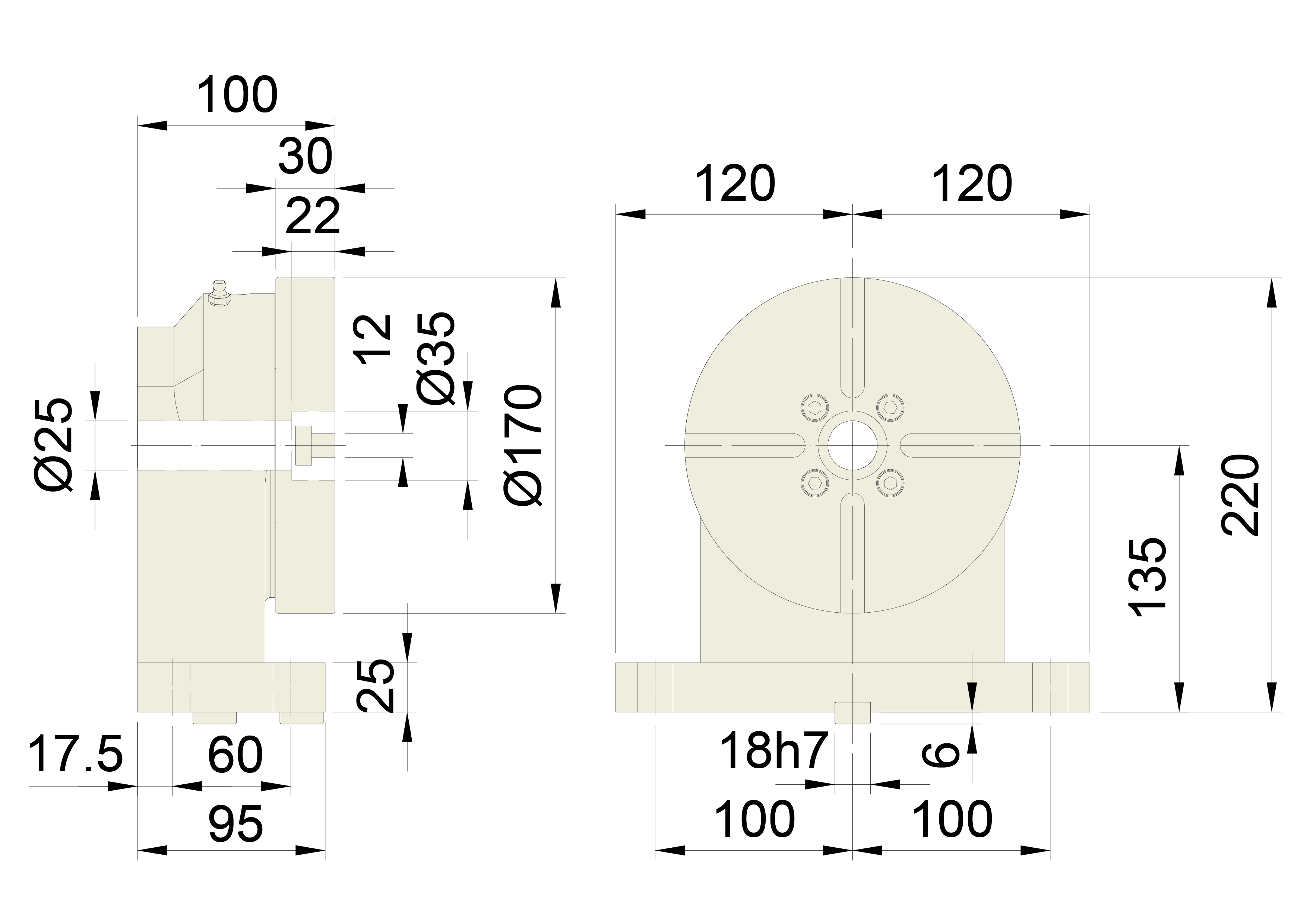

Dimension
